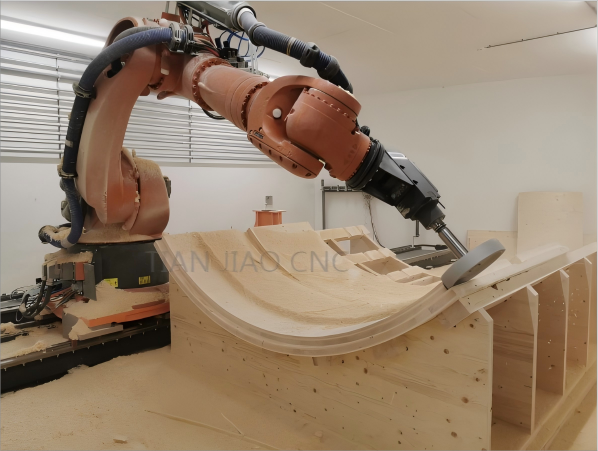

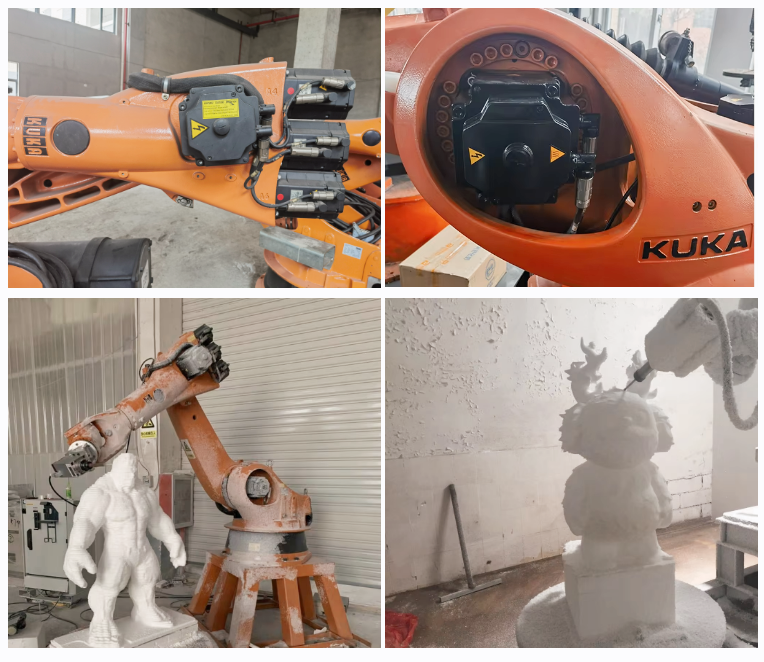

6 Axis Robot Arm Cnc Milling Engraving Router

This system is suitable for engraving work of various batches of workpieces in industrial production, suitable for cutting, grinding, drilling and other processing of workpieces, and product modeling of wood, stone, aluminum alloy and composite materials.

Product parameter：

Load (refers to the load of point at the foremost end of the 6th axis)	210kgs
Additional load on the arm	50kgs
Rated payload	260kgs
Maximum payload	275kgs
Weight	1077kgs
Motion axis	6
Pose repeatability (ISO 9283)	± 0.05 mm
Maximum reach	2700mm/3100
Protecton ratng (IEC 60529)	IP65
Protection ratng, in-line wrist (IEC 60529)	IP65/IP67
Sound level	< 75 dB (A)
Footprint	754 mm x 754 mm
Hole patern: mountng surface for kinematc system	S780
Permissible angle of inclinaton	≤ 5 °
Flange (on the 6th axis)	DIN ISO 9409-1-A50
Controller	KRC4
Transformaton name	KR C4: KR210R2700_2 C4 FLR
During operaton	0 °C to 55 °C (273 K to 328 K)
During storage/transportaton	-40 °C to 60 °C (233 K to 333 K)
Installation position	On the ground
CPU and main board	KUKA
Spindle with water cooling systerm	18kw Italy spindle
Rotart table	1500kgs china made
Software	Sprutcam
DeviceNet	OMRON
RAILS	5M/6M/7M/12M/25M
